How Use Radar Boat Like a Pro?
Boat radar systems are crucial for the safe navigation of any watercraft. The sophisticated tool assists mariners in avoiding obstacles, emerging threats, and treacherous weather conditions. Learning How to Use Radar Boat is essential. It is an integral part of the sailor’s armory when performing his duties under maritime laws.
Knowledge of radar is indispensable for anyone working in the marine environments. Boat radar used to be complex, challenging to read and tune, and based on old tech used for decades. They are much more useful and easier to use now. There are several different types, and using them is relatively simple.
The guide tells you everything about the boat radars and breaks down each component to demonstrate its purpose and explain how to use them effectively.
How Does a Radar Boat Work?
Radar stands for Radio Detection And Ranging. All the boat radar systems work by emitting a high-frequency radio wave and then listening for any return signal that gets bounced back.
When a signal bounces back off a boat, signal marker, or other solid objects, the radar calculates how long the process takes to determine the object’s distance. Some different types of radars make the calculation using the difference in the return’s frequency. They also evaluate the angle, which is a little harder to differentiate. The beam width of traditional radar is 3-4° wide, which makes bearings less accurate than the range.
Boats and solid objects are not the only things that bounce back the radio waves. Rain, flocks of birds, and even rough seas can reflect enough radar waves to show up on the screen. It can confuse the radar system, but again, modern systems are much more efficient.
Moreover, not everything makes a good reflector. Metallic surfaces are best, while GRP and Wood are poor reflectors. Carbon Fiber lies somewhere in between. The shape of the object matters, too. A curved and irregular surface will return some signal in the right direction.
Types of Marine Radars
Boat radars serve a critical function in ensuring safe and efficient navigation. Different types of marine radars have been developed to meet various maritime needs.
- Magnetron Transmitter Radar
- Solid State Boat Radar
- FMCW
1. Magnetron Transmitter Radars
It is the first form of boat radar and continues to play a pivotal role in modern maritime navigation. The type of radar relies on high-powered radar transmitters and radio waves interpreted by the system to provide essential data.
The ability to precisely interpret received signals sets Magnetron Transmitter Radar apart. However, their power consumption is high, and they need regular maintenance to work properly. Still, magnetron transmitter radars are a trusted choice for many mariners because of their proven reliability and comprehensive navigational assistance.
2. Solid State Radars
Advancements in technology have led to the development of solid state radars. They are characterized by their lower power consumption and superior resolution. Unlike magnetrons, they do not require a warm-up period, and they emit much lower levels of radiation, making them safer to use.
Solid State Radar’s ability to deliver high-resolution images in real time makes them ideal for a refined view of the surrounding environment. It can also detect small and low-lying objects which often go unnoticed.
Moreover, you will also get advanced features like automatic tuning, target tracking, and multi-sensor integration. It provides a more sophisticated level of maritime situational awareness.
3. FMCW Radars
Frequency Modulated Continuous Wave radars are another significant advancement in marine radar technology. It provides high-resolution imaging with excellent target detection capabilities, even in adverse weather conditions. The system operates by transmitting a continuous wave, with gradually changing frequency over time.
It compares the frequency of the signal transmitted and the signal received to precisely calculate the distance. This ability makes them very efficient for short to medium-range applications, as they can provide more detail and minimize the risk of collision.
The radar is also great for vessel operators. It delivers superior performance and the maximum degree of safety and situational awareness.

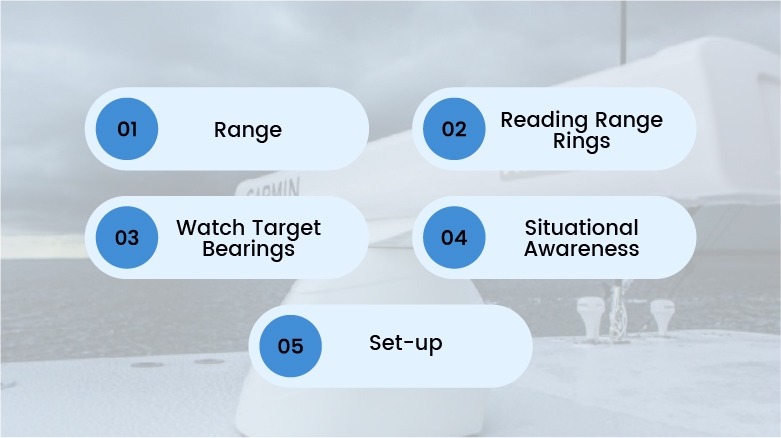

5 Essentials to Effectively Use a Radar Boat
Although boat radars have become significantly intelligent and easier to use. Still, there are a few things to keep in mind to operate a boat radar effectively. Here are the things you should keep in mind:
1. Appropriately Setting Up the Range
Setting the range is often where mistakes happen. Most boater’s first impulse is to set it as far as possible. If you have a 24-mile radar, even when you are 24 or more miles away, you will rarely want to put the range that far.
Trying to represent such vast distances on a 12 or 16-inch LCD is not good. Even the biggest targets become tiny dots; if the traffic is high in the surroundings, the screen will be filled with a load of tiny dots, and you will have difficulty finding your target.
Identifying the target will be much easier if you drop the range to a mile or two. The range will be enough to track targets and avoid collisions in the open water. When you need to identify specific structures like inlets or piers, ranging the radar further makes it easier to locate them.
The long ranges can be helpful when you are trying to return from far-off land masses or track a thunderstorm. Otherwise, shorter ranges are much more useful.
2. Reading Range Rings
Understanding how to read range rings goes hand in hand with ranging in and out of radar. All boat radar screens have rings that let us see the approximate distance of a target. Some radars show the distance a ring indicates on-screen. In some, you have to do some math to figure out what distance a ring indicates in different range settings.
For example, if the radar is set at a four-mile range with two rings. The first ring will represent 2 miles, and the second indicates four miles. The important thing is to be aware of the range rings and how your unit indicates the target rings. If you have covered the basics, you will always know how far off those targets are.
In addition to range rings, some radars have VRM or Variable Range Marks. It allows you to set a range mark to determine the distance of different targets.
3. Watch Target Bearings
The land and channel markers are static; boats are moving targets. On many boat radars, you will have to watch a target for quite some time to ascertain its bearing (direction of travel). Finding the boat’s direction is essential in reduced visibility to avoid collision.
To analyze target bearings, some radar systems have advanced technologies:
- One of them is Doppler Functionality. It paints a trail behind, which makes identifying the bearing much easier.
- Some radar units can color-code targets to indicate whether they are getting closer to you or farther away from you.
- MARPA (Mini-Automatic Radar Plotting Aid) is the most advanced system in marine radars. It can display the target’s speed, bearing, the closest point of approach, and the time to the CPA.
4. Situational Awareness
Situational awareness is vital in interpreting what you see on the radar screen. Different conditions can have different effects on what you are looking at. For example, the sea state can cause your boat to pitch in the waves. When the bow goes up on a giant wave, the radar’s transmission may temporarily pass right over a target, and it will disappear from your radar screen for a couple of seconds.
Similarly, heavy rain can cover a portion of your screen and hide other targets. So, whenever you are captaining the boat, you should have a high level of situational awareness to interpret the radar effectively.
5. Set-up Radar System
How your radar system is set up significantly affects what you see on-screen. Many units can overlay the radar view over the Marine Chartplotter, which makes identifying the land masses and markers significantly easier.
But if your radar and Chartplotter are not networked together or the unit’s settings aren’t appropriate, you will not be able to enjoy the functionality. This is one of the reasons why a professional should set up a boat radar. Still, it is essential to familiarize yourself with the radar boat and its settings.

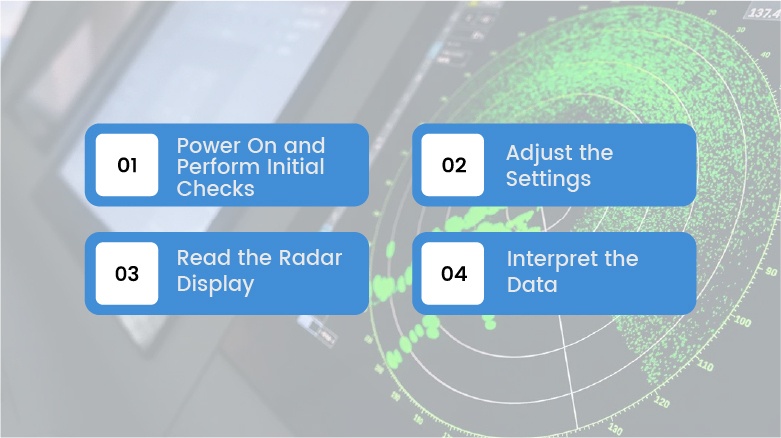

How to Use Radar on a Boat?
Using a boat radar requires understanding its operation, setting it up correctly, and interpreting its data to make informed decisions.
Here is a detailed guide on how to use radar boat.
Step 1: Power On and Perform Initial Checks
The first step is to power on the radar and let it initialize. Most radars have a self-test feature. Perform the test to ensure the system is functioning correctly and all components are working as expected. Moreover, don’t forget to check for available firmware updates to ensure the radar has the latest software version for improved performance.
Step 2: Adjust the Settings
Fine-tuning the radar before each trip is essential for efficient navigation and identification.
- Range Settings: Choose a range that matches the immediate navigation needs. Short ranges are ideal for detailed, close-quarter maneuvers, while longer ranges help detect far-off obstacles in open waters.
- Gain Control: Adjust the gain to balance the display. Higher gain increases sensitivity and detects small objects. It is useful, but higher sensitivity might introduce unwanted clutter.
- Clutter Suppression: Enable sea and rain clutter suppression features to reduce interference caused by waves and precipitation.
- Target Enhancements: Activate additional features like echo trails to monitor moving objects or Doppler colorization to differentiate between stationary and moving targets.
Step 3: Read the Radar Display
Interpreting the radar screen accurately is essential for safe navigation.
Learn how various objects like landmasses, boats, and buoys appear on the display. Identify the differences between stationary and moving objects and boats and ships to drive the boat effectively. Moreover, align the radar’s heading line with your boat’s bow direction for accurate orientation and data representation. Monitor potential blind spots caused by masts, antennas, or other onboard obstructions.
Step 4: Interpret the Data
Use the radar display to gather actionable insights and safely steer through open waters.
- Estimate the distance to objects relative to your boat with range rings.
- Monitor the changing position of targets over time to assess their movement and direction.
- Pay attention to the closest point of approach and the time to CPA of moving vessels. It provides essential information to proactively avoid collision.
With essential information, you can navigate effectively in the sea. It not only makes your journey safer but also protects others from damage in bad weather.
Importance of Training for Proper Marine Radars Usage
Using marine radars is a necessary part of boaters’ navigation. However, without proper training, it can be difficult to use it properly.
To reap maximum benefits from boat radars, it is critical that the individual operating them has a comprehensive understanding of their functions. It requires in-depth knowledge of how to interpret and analyze the radar data. This knowledge is vital to making informed decisions in complex and potentially hazardous sailing conditions.
Circumstances like heavy rain and dense fog necessitate the ability to read the radar’s output and draw informed conclusions. Not having a thorough understanding can lead to misinterpretation of crucial data, resulting in potential dangers.
Investing time and money in training how to use a radar boat may seem hefty, but the returns can be significant. Improved understanding results in better navigation safety, which reduces the chances of accidents.
Additionally, professionals with proper training can build a safer, more competent, and reliable team. The importance of marine training cannot be overstated. It is a fundamental requirement for any person involved in the boat navigation system.
FAQs
Is radar necessary if I have GPS on my boat?
GPS provides location and helps with route planning but cannot detect objects or moving vessels around you. Radar Boat systems provide real-time data about your surroundings and ensure a safer journey.
What should I focus on when setting up my radar system?
Proper mounting, calibration, and integration with supporting devices are essential for an effective radar system. It should be positioned where it has an unobstructed view of your surroundings, and settings should be tailored to your vessel’s needs, including range and sensitivity adjustments.
How can I practice reading boat radar in safe conditions?
Start using the radar in familiar waters during the daytime and clear weather. Compare what you see on the screen with what’s visible around you to understand the distance and how objects appear on the screen. The practices build confidence when visibility is limited.
What are some common mistakes to avoid when using radar?
Boaters often make mistakes when using radars. Some common errors include setting the range too far or too close, ignoring the radar’s maintenance needs, and failing to monitor moving targets regularly. Always adjust the radar range based on your immediate environment and keep the system well-maintained.
Conclusion
There is no substitute for a radar on the water. It is an incredibly helpful tool, and no doubt, using it has become far easier. Still, it takes a season or two to learn how to use a radar boat. So, try using your radar as often as possible in the broad light. It will make you familiar with what you see on the screen as you can look around and see the targets displayed with your own eyes.
Lastly, investing time and money in learning how to use radar boat systems is not just about compliance with the law or embracing technology. It ensures safety in the most unpredictable marine environments and prevents losses.
