Johnson & Evinrude 2000-2007 150-250 HP Magnum Outboard Gearcase Parts Diagrams

This page offers a comprehensive selection of replacement and rebuild parts for Johnson & Evinrude Magnum V6 outboard gearcases, covering model years 2000 through 2007. You’ll find essential parts—such as water pump kits, impellers, pump housings, gearsets, seal kits, and bearing kits. Also included are key gearcase rebuild elements such as water screens, skegs and cavitation plates, anode kits, bearing carriers, gearsets, clutch dogs, seal kits, and drive shafts. Ideal for DIY maintenance or full rebuilds, all parts are sourced for OEM fit and performance.

We offer a complete rebuild kit for this gearcase as well as individual aftermarket parts.

Complete Rebuild Kit

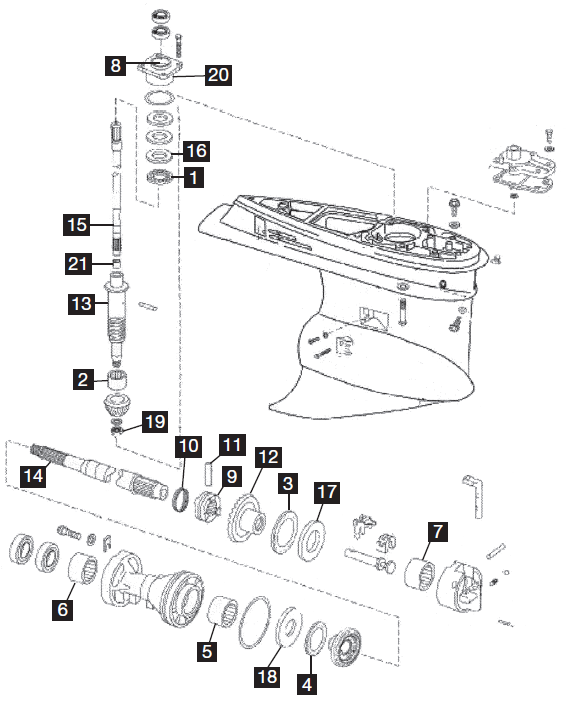

The following parts correspond to the numbers on the diagram above:

1. Drive Shaft Bearing
2. Pinion Bearing
3. Forward Thrust Bearing
4. Reverse Thrust Bearing
5. Forward Carrier Bearing
6. Aft Prop Bearing
7. Shifter Bearing
8. Drive Shaft Cap Bearing
9. Clutch Dog
10. Clutch Dog Spring
11. Clutch Dog Pin
12. Gear Set
• Magnum 2000-2007
• M2 2008-2012
13. Lower Drive Shaft
14. Prop Shaft
15. Upper Drive Shaft

    • 60°

      • 20"
      • 25"
    • 90° Looper
    • 20"
    • 25"
16. Drive Shaft Thrust Washer
17. Forward Thrust Washer
18. Reverse Thrust Washer
19. Pinion Nut
20. Bearing Housing Assembly
21. Retainer Clip & Pin

 We also offer the following products:

• Bearing Kit
• Shim Kit
• Seal Kit
• Water Pump Kit
• Late Model Prop Shaft Thrust Washer
