Yamaha Outboard Parts Guide: Breakdown & Maintenance Tips

Whether you are operating a lightweight F25 on a jon boat or a powerful VMAX 250 for tournament fishing, the outboards need extreme care and attention. You cannot entirely trust the mechanic with the repairs; learning about Yamaha outboard parts is crucial for boat owners. The knowledge makes you familiar with the mechanism of your Yamaha engine, enables you to recognize faults quickly, allows you to do necessary maintenance, and make informed choices while buying parts.

In this guide, we uncover all you need to know about Yamaha outboard motor components, with hands-on advice to avoid maddening breakdowns and enjoy more water time.

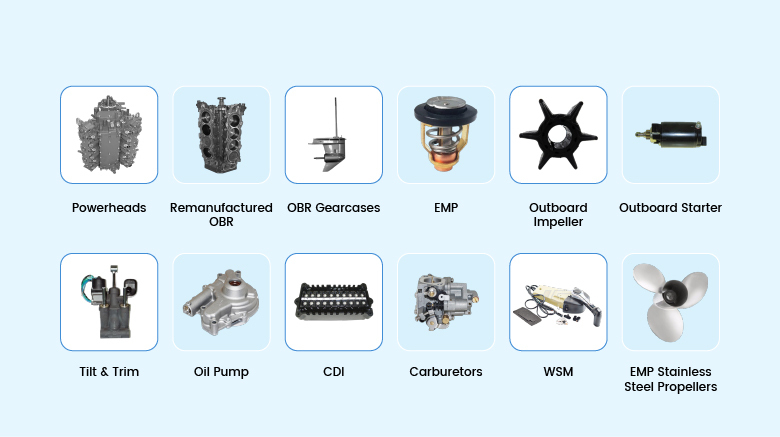

The Basic Yamaha Outboard Engine Components

1. Powerhead

A powerhead is the heart of your Yamaha motor, where the combustion process takes place. It's a sophisticated assembly of carefully crafted parts that interacts in perfect harmony.

• Crankshaft: Transforms the pistons' up and down movement into rotational energy.
• Pistons & Connecting Rod: The core of the combustion cycle, which travels inside the cylinders.
• Cylinder Head, Valves, & Camshaft: Regulate the air & fuel mixture intake and the discharge of exhaust gases. It accurately times them for ideal efficiency.

Common Problems & Maintenance: Powerhead parts are badly damaged by overheating. Proper lubrication and regular engine oil changes are essential to avoid wear and friction on these important parts. Powerhead issue often presents themselves with odd knocking noises or excessive smoke.

Upgrade Your Boat with OBR Remanufactured Yamaha Powerheads

2. Fuel System

Your Yamaha's fuel system is used to provide the exact amount of clean fuel to the engine for efficient combustion.

• Carburetors / Fuel Injectors: Atomize and dispense fuel into the combustion chambers of the engine. Yamaha outboards feature an electronic fuel injection system (EFI) for efficiency and lower emissions.
• Fuel Pump: Pulls the fuel from the tank and supplies it to the injectors and carburetors.
• Fuel Filter: Essential for filtering out impurities (dirt, trash) in the fuel before reaching sensitive engine parts.
• Fuel Lines: Carry fuel safely through the system.

Problems & Maintenance: Clogged fuel filters are a major cause of outboard malfunction, particularly with ethanol-blended fuels. Periodic replacement of the Yamaha fuel filter is not optional. Trouble signs include stalling, rough idling, or loss of power.

Ensure Optimal Fuel Supply, Explore Yamaha Fuel System Parts

3. Ignition System

The ignition system supplies the electrical spark required to fire the air-fuel mixture in the cylinders, causing combustion.

• Spark Plugs: Form the spark used to ignite the fuel. They are consumables that get worn out over a period of time.
• Ignition Coil: Converts low battery voltage into the high voltage required for the spark plugs.
• CDI Unit (Capacitor Discharge Ignition): Regulates the timing of the spark.
• Stator & Regulator/Rectifier: Supply and regulate the electrical power for the entire outboard, such as battery charging.

Common Problems & Maintenance: Clogged or worn spark plugs may result in misfiring and poor performance. Electrical faults in the ignition system may result in intermittent loss of power or failure to start. Use only the correct NGK spark plug that Yamaha recommends.

Shop Yamaha Outboard Ignition System

4. Cooling System

The outboard engine of Yamaha produces huge amounts of heat, and the cooling system becomes essential to avert overheating and total destruction.

• Water Pump Impeller: A rubber pump impeller pushes the cooling water from the body of water surrounding the boat into the engine. This is perhaps the most important consumable cooling element.
• Thermostat: Detects and Controls the operating temperatures of the engine by governing coolant flow.
• Water Pump Housing & Cooling Passages/Holes: Hold and channel the cooling water through the engine block.

Common Problems & Maintenance: The impeller of the water pump deteriorates with usage and over time, and turns brittle. A failed impeller will cause the engine to have poor cooling and can ultimately cause an engine meltdown. Replacement should be done regularly. Overheating indications include warning alarms, steam, or high temperature gauges.

Keep Yamaha Outboard Cool with New and OEM Cooling Systems

5. Lubrication System

The lubrication system bathes all moving internal engine components in oil, lowering friction, carrying away heat, and avoiding wear.

• Oil Pump: Distributes engine oil throughout the powerhead.
• Oil Filter: Cleans contaminants out of the engine oil.
• Oil Reservoir: Holds the engine oil. On some four-stroke Yamaha outboards, this could be an external tank, particularly on the larger units.

Common Problems & Servicing: Failure to change oil or the use of inappropriate oil, i.e., non-FC-W rated marine oil in four-strokes, or improper TC-W3 in two-strokes, will cause premature wear and ultimate engine failure. Only use oils and filters approved by the manufacturer.

Avoid Heating and Friction damage with the new Yamaha Lubrication System

6. Lower Unit / Gearcase

The lower unit, also commonly referred to as the gearcase, is made up of many parts that are necessary for the operation of your marine power center to go forward, reverse, or neutral.

• Gears (Forward, Reverse, Pinion): These will directly transmit power from the drive shaft to the propeller shaft while enabling forward and reverse operations.
• Bearings & Seals: These provide smooth rotation as well as keep water out of the fragile gearcase.
• Shafts (Drive Shaft, Propeller Shaft): The drive shafts connect the powerhead, and the propeller shaft connects the propeller.

Common Problems & Maintenance: The prop lube change is definitely needed to keep props lubricated and to dispose of metal shavings or water contamination. Water-contaminated gear lube causes rust and premature failure. Symptoms of issues are grinding sounds, hard shifting, or prop shaft oil seepage.

Explore Lower Unit Parts for Yamaha Outboard

7. Propeller

The propeller is your outboard's direct link to the water, translating the rotational power of the engine into thrust.

• Blades: The curved faces that thrust against the water.
• Hub: The middle section that mounts onto the propeller shaft.
• Splines: Grooves within the hub that mate with the propeller shaft for a solid fit.

Selecting the Right Propeller: Propeller selection has a big influence on your boat's performance, fuel consumption, and maximum speed. Several factors are involved in selecting the proper propeller.

1. Pitch
2. Diameter
3. Material (aluminum, stainless steel)
4. Number of Blades

A cracked or damaged propeller will produce excess vibration and lead to poor boat performance and even lower unit damage.

Also Browse: Yamaha Propeller Parts

8. External Electrical Components

In addition to the internal ignition parts, outside electrical components play an important role in starting, running, and keeping an eye on your Yamaha outboard.

• Wiring Harnesses & Battery Cables: Send electrical power throughout the whole outboard system.
• Switches (Ignition, Trim/Tilt): Enable you to turn the engine on/off and change its tilt.
• Sensors & Gauges: Give important details about temperature (water temp sensor), oil pressure (oil pressure sender), RPMs (tachometer sender), and more.

Common Problems & Maintenance: Corrosion on the battery terminals or in wiring harnesses is a common cause of electrical faults. Always have a clean, secure connection. A malfunctioning sensor will give inaccurate gauge readings or even cause the engine to go into "limp mode" as a protective measure.

Keep Electronics in Good Shape with Yamahe Electrical Components

9. Steering and Control

These systems enable you to maneuver your boat.

• Steering, Throttle, & Shift Cables: Cables that mechanically transfer your input from the outboard helm to steer, speed (throttle), and gear (shift). Hydraulic steering utilizes fluid pressure for smoother steering.
• Remote Control Box: It houses throttle, shift, and usually trim/tilt controls.

Common Problems & Repair: Stuck or rusty cables can render steering and shifting hard and even hazardous. Lubrication and checking regularly are essential.

Browse Yamaha Steering and Control Systems

10. Mounting Trim and Tilt

The mounting, trim, and tilt components securely attach your outboard to the boat and allow you to adjust its angle.

• Transom Clamp Brackets: The sturdy brackets that physically secure the outboard to your boat’s transom.
• Power Trim and Tilt Unit: A Hydraulic system that enables you to tilt the outboard in relation to the boat. This is important for maximizing performance (trim) and lifting the engine fully out of the water for trailering and shallow water (tilt).
• Hydraulic Cylinders & Pump Motor: Primary parts of the trim and tilt system.

Common Issues and Maintenance: Trim motors can fail due to corrosion or electrical issues, preventing you from making adjustments. You should always keep the hydraulic fluid at the correct level. Moreover, proper trim helps with fuel efficiency, ride comfort, and propulsion.

Shop Yamaha Mounting Trim and Tilt Parts

Maintenance Essentials You Should Have

Preventive maintenance is one of the smartest investments you can make in the longevity of your Yamaha outboard. These components are intended to be routinely replaced before more serious, expensive issues arise.

Regular Maintenance Essentials

• Sacrificial Anodes: These tiny pieces of metal (zinc, aluminum, or magnesium) are designed to guard your outboard against corrosion, particularly in seawater. Replace them when considerably diminished.
• Engine Oil & Gear Lube: Lubrication is a must. Use only marine-grade stuff that is formulated for your Yamaha.
• Grease: Lubricate pivot points and linkages.
• Gaskets & O-rings: Good seals to prevent leaks.
• Fuel & Oil Filters: Necessary for clean fluids.
• Spark Plugs: Necessary for efficient combustion.

Choosing the Right Parts: Ensuring Compatibility & Longevity

Getting the right part for your particular Yamaha outboard model is hard, particularly if you have an old Yamaha engine. Our decades of experience can assist you in selecting the right parts that extend the life of your engine.

i. Understand Part Numbers

The best method to locate the proper part for your particular Yamaha outboard is to look for the model and serial number found on the ID plate on the transom bracket.

In addition, always double-check and refer to the owner's manual or OEM Yamaha parts diagram to discover the correct fit.

Knowing the model number helps you limit compatible parts. If you know the part number of the part being replaced, then you can identify the part by just searching the internet.

ii. OEM vs Aftermarket Parts

• OEM (Original Equipment Manufacturer) Parts: Manufactured by Yamaha, these parts ensure an exact match and function, replicating the original parts.
• Aftermarket Parts: Manufactured by third-party companies, they tend to be more cost-effective. Quality can be inconsistent, so buying from trusted sellers is important.
• Remanufactured Parts: These are used OEM parts that have been carefully rebuilt to original standards. Remanufactured parts have many benefits, like affordability and dependability.

iii. Reputable Sellers: New, Used, and Remanufactured Options

Marine Parts Warehouse has every solution for your Yamaha outboard motors. From common components to rare, hard-to-find parts for both new and older models, we have an extensive inventory of new, remanufactured, and used parts to get you back on the water quickly.

Our experienced team has a deep understanding of Yamaha outboards, always available to help you choose the right products to ensure you find exactly what you need.

Common Yamaha Outboard Issues – and the Parts to Fix Them

Boaters often face recurring issues that trace back to common wear points. Here’s a detailed table of problems, causes, and the right Yamaha or marine-rated parts to fix them:

Symptom / Issue	Likely Cause	Replacement Part(s)
Hard Start / No Start	Worn spark plug, weak fuel pump, or bad starter	NGK spark plug, fuel pump, starter motor
Overheating	Bad impeller, thermostat failure, or clogged passages	Water pump kit, thermostat, flush adapter
Poor Acceleration / Bogging	Dirty fuel injector, restricted fuel filter, bad VST	Fuel injector, inline fuel filter, VST filter kit
Sudden Engine Shutoff	Faulty ignition coil or kill switch short	Ignition coil, kill switch
No Trim or Tilt Movement	Faulty relay, corroded trim switch, or bad tilt motor	Trim/tilt relay, trim switch, tilt motor
Engine Vibrates at Idle	Worn motor mounts or a misfiring cylinder	Engine mounts, ignition coil, and spark plug
Excessive Smoke (2-stroke)	Oil-rich fuel mix or stuck carburetor float	Carburetor rebuild kit, fuel diaphragm kit
Propeller Cavitation	Damaged propeller, spun hub, or wrong pitch	New propeller, hub kit
Gear Slipping or Grinding	Worn clutch dog or stripped gear teeth in the lower unit	Gear set, clutch dog, shift rod
Charging System not Working	Bad rectifier/regulator or stator	Voltage regulator, stator coil
Battery not charging	Broken charge coil, loose ground	Charge coil, terminal harness
Loss of Top Speed	Dirty prop, wrong gear ratio, throttle cable stretch	Propeller, throttle linkage/cable
Steering is Stiff or Stuck	Dried grease, corroded steering tube	Steering kit, marine grease, cable
Fuel Leak or Strong Fuel Smell	Cracked fuel line, loose clamp, or leaky bulb	Marine fuel hose, hose clamps, primer bulb
Engine Surges at Speed	An air leak in the fuel line or a failing fuel pump	Fuel line assembly, fuel pump

FAQs

What tools are needed for basic outboard repairs?

For basic repairs, you will need the following tools:

• Metric Socket Set
• Wrenches
• Screwdrivers
• Prop Wrench
• Pliers
• Spark Plug Socket
• Torque Wrench

A fuel filler wrench and an impeller puller can also prove very useful for certain jobs. Keeping a good service manual for your specific Yamaha model is worth its weight in gold.

What are the most frequently replaced Yamaha outboard parts that must be replaced or serviced regularly?

From our ten years of experience, the most often replaced Yamaha outboard parts are:

• Spark plugs
• Fuel filters
• Oil filters
• Water pump impellers
• Anodes

In addition to these parts, perform regular inspection of propeller blades, control blades, and gearcase lube.

Can I use a used or remanufactured Yamaha outboard part, and what should I look for?

Yes, used and remanufactured parts are a cost-effective and reliable solution, especially for older or harder-to-find components. However, ensure that you select a reputable supplier like Marine Parts Warehouse, which thoroughly inspects and tests parts for both functionality and integrity.

Final Thoughts

Yamaha outboard components are an investment in the dependability, performance, and longevity of your boat's motor. That's why it's not only a technical necessity but more than that to have a good understanding of them. When you become familiar with the engine, electrical system, lower unit, and control system, you give yourself the ability to maintain the Yamaha in its best condition and reduce unwanted problems.

So, if you are seeking Yamaha outboard components, browse our wide range of new, used, and remanufactured outboard parts.

For further queries, call us at 270-618-5200 and let our team help you find the right outboard parts for you.

Posted by Brian Whiteside
