We offer a complete rebuild kit for this gearcase as well as individual parts.

Complete Rebuild Kit

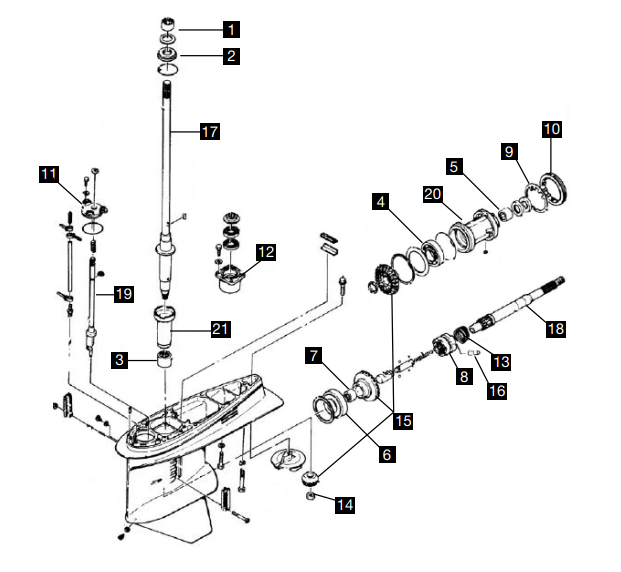

The following parts correspond to the numbers on the diagram above:

1. Drive Shaft Cap Bearing
2. Upper Drive Shaft Thrust Bearing
3. Pinion Bearing
4. Reverse Gear Bearing
5. Aft Carrier Bearing
6. Outer Forward Gear Bearing
7. Inner Forward Gear Bearing
8. Clutch Dog
9. Tab Washer
10. Spanner Nut
11. Shift Rod Cover
12. Drive Shaft Cap
13. Clutch Dog Spring
14. Pinion Nut
15. Gearset
16. Clutch Dog Pin
17. Driveshaft
    - 20" F115TLR Driveshaft
    - 25" F115TXR Driveshaft
    - 20" F115LB Driveshaft
    - 25" F115XB Driveshaft
18. Propeller Shaft
19. Shiftrod
    - F115TLR/TXR Shiftrod 'B'
    - F115LB/XB Shiftrod 'A'
20. Bearing Carrier
21. Driveshaft Sleeve

 We also offer the following items:

• Bearing Kit
• Water Pump Kit
• Seal Kit
