Mercury & Mariner 1986-2015 V6 2.0, 2.4, & 2.5L 135-200 HP Gearcase Parts Diagrams

This page offers a complete catalog of lower unit components for Mercury & Mariner V6 outboard engines—including 2.0L, 2.4L, and 2.5L variants, ranging from 135 to 200 HP and spanning model years 1986–2015. Technicians and DIY boat owners will find:

  • Gearcases & lower drives tailored for 2.0 L / 2.4 L / 2.5 L 135–200 HP models
  • Supporting components like anodes, gear sets, shaft replacements, bearings, propellers, hub kits, and more
  • Access to detailed parts diagrams, ensuring confident identification and ordering
  • Easy navigation with organized sections for quick browsing across outboard-related categories

Whether you're rebuilding a powerhead or servicing the gearcase, this resource ensures correct, OEM-aligned parts for maximum engine performance and longevity.

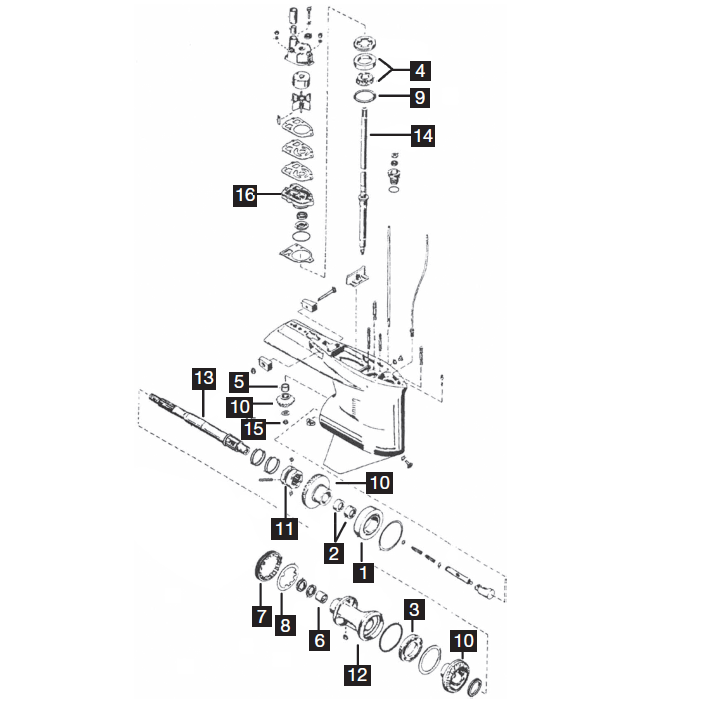

The following parts correspond to the numbers on the diagram above:

  1. Spanner Nut, or Small Spanner Nu
  2. Tab Washer
  3. Crankshaft/Propshaft Oil Seal
  4. Propshaft Needle Bearing
  5. Bearing Carrier
  6. Bearing Carrier O-ring
  7. Reverse Gear Ball Bearing
  8. Reverse Gear Thrust Ring
  9. Gear Set (2.0:1), or Gear Set (1.87:1, 3 1/2"Race), or Gear Set (1.87:1, 3 1/8"Race)
  10. Propshaft
  11. Clutch Cross Pin Spring
  12. Clutch Dog, or Clutch Dog (RH & LH)
  13. Forward Gear Needle Bearing
  14. Tapered Roller Bearing (3.500 OD), or Tapered Roller Bearing(3.125 OD)
  15. Forward Gear Shim Kit
  16. Shift Cam Rod Detent Kit
  17. Pinon Gear Nut & Washer
  18. Pinion Nut Washer
  19. Pinion Bearing
  20. Shift Shaft Seal Bushing
  21. Driveshaft (L, 20") or Driveshaft (XL, 25")
  22. Driveshaft Bearing Shim Kit
  23. Driveshaft Upper Bearing
  24. Driveshaft Retainer Nut
  25. Lower Water Pump Gasket
  26. Driveshaft Bearing Shim Kit
  27. Water Pump Base
  28. Water Pump Base Gasket
  29. Water Pump Base Gasket
  30. Water Pump Impeller
  31. Water Tube Seal
  32. Water Pump Kit w/Housing

We also offer a complete Seal Kit and a complete Bearing Kit
