Johnson & Evinrude 1978-1998 V4 85-140 HP Crossflow Gearcase Parts Diagrams

Discover a comprehensive selection of outboard gearcase parts for Evinrude 75-90 HP ETec outboard engines (2004–2012). From complete rebuild kits to essential items like seal kits, bearings, gearsets, thrust washers, clutch dog components, driveshafts, and anodes, we stock all components to restore reliability and performance. All parts are designed to meet or exceed OEM specifications, with fast shipping from OBParts. Whether you're repairing damage, performing routine maintenance, or doing a complete rebuild, our detailed diagrams and fitment information make finding the right part easy.

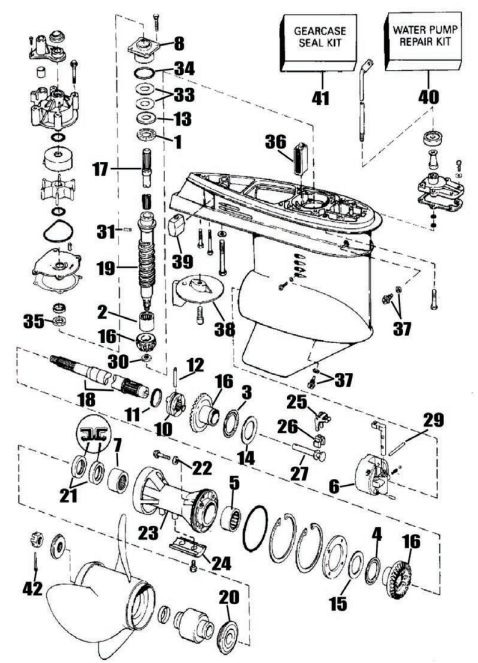

The following parts correspond to the numbers on the diagram above:

1. Driveshaft Thrust Bearing
2. Pinion Bearing
3. Forward Thrust Bearing
4. Reverse Thrust Bearing
5. Reverse Gear Bearing
6. Shift Housing w/Bearing
7. Propshaft Bearing
8. Driveshaft Bearing Housing
9. Upper Driveshaft Bearing
10. Clutch Dog
11. Clutch Dog Spring
12. Clutch Dog Cross Pin
13. Thrust Washer Driveshaft
14. Forward Thrust Washer
15. Reverse Gear Thrust Washer
16. Gear Set
17. Upper Driveshaft 20"
18. Propshaft
19. Lower Driveshaft
20. Propshaft Thrust Washer
21. Crankshaft/Propshaft Seal
22. Bearing Carrier Bolt Seal
23. Bearing Carrier
24. Bearing Carrier Zinc Anode
25. Bearing Housing Shift Lever
26. Shift Cradle
27. Bearing Housing Shifter Shaft
28. (Not Pictured)
29. Shift Lever Pin
30. Pinion Nut
31. Driveshaft Pin
32. (Not Pictured)
33. Driveshaft Shim .003, Shim Kit
34. Driveshaft Bearing O-Ring
35. Driveshaft Oil Seal
36. Water Intake Screen
37. Flat Blade Drain Screw, Drain Screw Gasket
38. Trim Tab - STD
39. Anode Block Gearcase
40. Water Pump Kit w/Housing
41. Seal Kit
42. Prop Nut Cotter Pin
43. Water Pump Gasket

We also offer a complete Bearing Kit!
