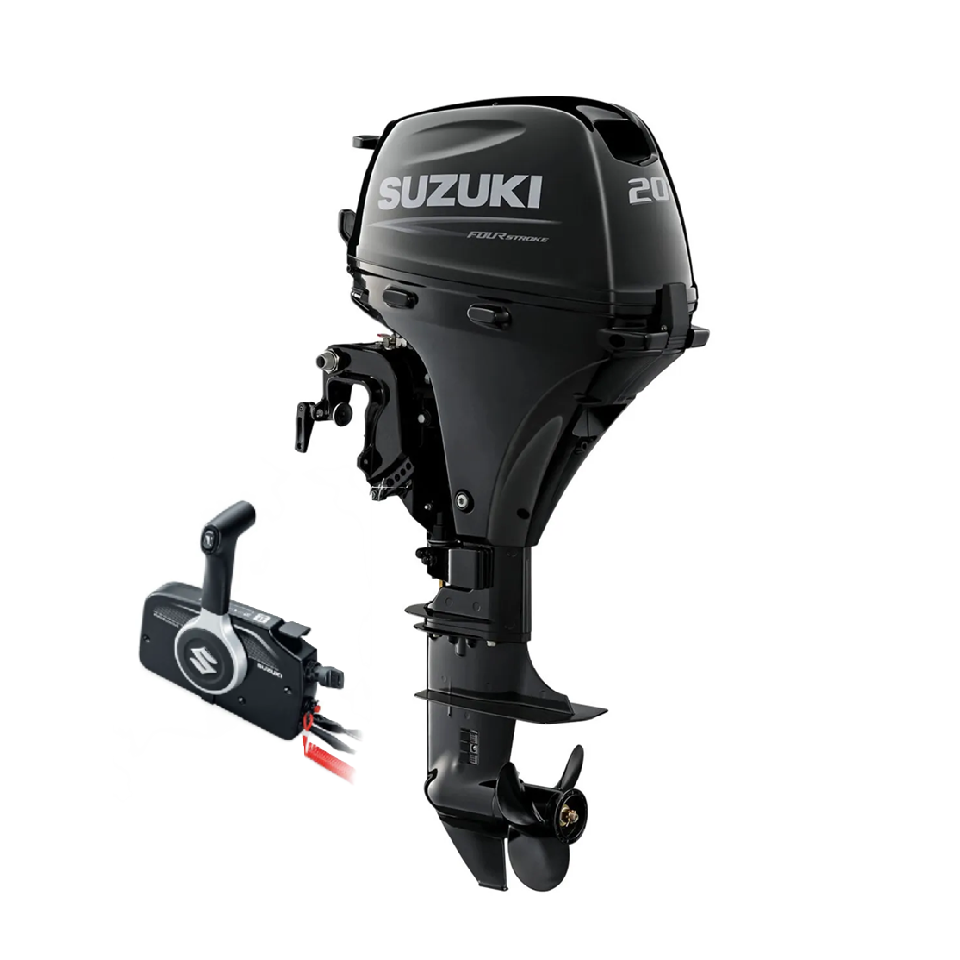

Suzuki DF20ATL 20 HP EFI 4-Stroke Outboard Motor
The Suzuki DF20ATL combines Suzuki's battery-less Electronic Fuel Injection (EFI), electric start, remote control operation, and Power Trim & Tilt into a lightweight, fuel-efficient outboard designed for boats equipped with a steering console. Featuring a 20-inch long shaft, the DF20ATL is an excellent choice for aluminum fishing boats, skiffs, utility boats, small pontoons, work boats, and other applications requiring dependable performance and the convenience of remote operation.
Suzuki's battery-less EFI system delivers dependable starting, exceptional fuel economy, smooth throttle response, and reduced maintenance compared to traditional carbureted outboards. The remote-control configuration allows the outboard to be operated comfortably from the helm, while Power Trim & Tilt lets you adjust engine angle with the push of a button for improved performance, shallow-water operation, and easier trailering.
✓ Authorized Suzuki Dealer
✓ Factory Suzuki Warranty Included
✓ Ships in Approximately 5 Business Days
✓ Financing Available
✓ Expert Technical Support
✓ Family Owned Since 1971
WHAT'S INCLUDED?
• Suzuki DF20ATL Outboard Motor
• Suzuki Side-Mount Remote Control Box
• 12 Liter (3.17 Gallon) Portable Fuel Tank
• Fuel Hose Assembly
• 3-Blade Aluminum Propeller (9-1/4" Diameter × 9" Pitch)
• Owner Documentation
• Suzuki Factory Warranty
• FREE Suzuki ECSTAR 4-Stroke Engine Oil
CONTROL CABLES REQUIRED
The Suzuki DF20ATL includes a Suzuki side-mount remote control box.
Throttle and shift control cables are NOT included and and can be ordered separately here. → Choose Your Suzuki Control Cable Length
Most installations require two control cables: one cable for throttle operation and one cable for shift operation.
The correct control cable length depends on the size of your boat, control box location, cable routing, and distance from the control box to the outboard. When measuring for cables, measure from the location of your control box to the back corner of the boat; then from the corner of the boat to the engine and add 2 feet.
Control Box to Corner + Corner to engine + 2 feet = Needed Cable Length
If you are unsure which control cable length or rigging components you need, contact Marine Parts Warehouse before ordering and our team will be happy to help.
WHY BUY FROM MARINE PARTS WAREHOUSE?
• Authorized Suzuki Outboard Dealer
• Full Factory Suzuki Warranty Included
• Ships in Approximately 5 Business Days
• Financing Available
• Expert Technical Support
• Family Owned Since 1971
• Professional Installation Available
The DF20ATL features a 20-inch long shaft and is designed for boats with approximately a 20-inch transom height.
Using the correct shaft length helps maximize performance, maintain proper cooling system operation, and improve overall engine reliability.
QUICK SPECIFICATIONS
Horsepower: 20 HP
Engine Type: 4-Stroke
Cylinder Configuration: Twin Cylinder
Fuel System: Electronic Fuel Injection (EFI)
Steering: Remote Control
Starting System: Electric Start
Trim & Tilt: Power Trim & Tilt
Shaft Length: 20" Long Shaft
Weight: 119 lbs
Remote Control Box: Suzuki Side-Mount Control Box Included
Throttle & Shift Control Cables: Not Included – Sold Separately
Fuel Tank: 12 Liter (3.17 Gallon) Portable Fuel Tank Included
Propeller Included: 3-Blade Aluminum Propeller (9-1/4" Diameter × 9" Pitch)
Color: Nebular Black
Warranty: Suzuki Factory Warranty
Shipping: Free Shipping
IDEAL APPLICATIONS
The Suzuki DF20ATL is an excellent choice for:
• Aluminum Fishing Boats
• Skiffs
• Utility Boats
• Small Pontoon Boats
• Work Boats
• Console Boats
• Boats Equipped with Remote Steering
• Boats with a 20-Inch Transom
WHY CHOOSE REMOTE CONTROL?
• Suzuki side-mount remote control box included
• Operates the outboard from the boat's helm
• Convenient throttle and shift operation
• Excellent choice for boats with steering consoles
• Allows control cables to be selected based on the boat's required routing length
WHY CHOOSE POWER TRIM & TILT?
• Convenient engine trim adjustment
• Easier shallow-water operation
• Improved control of engine position
• Easier tilting for trailering and storage
• Helps optimize boat performance and handling
• Reduces the effort required to raise and lower the outboard
WHY CHOOSE EFI?
• Battery-Less EFI Technology
• Easier Starting
• Outstanding Fuel Economy
• Smooth Idle
• Excellent Throttle Response
• Cleaner Emissions
• No Primer Required
• Reduced Maintenance
• Proven Suzuki Reliability
FREQUENTLY ASKED QUESTIONS
Does the Suzuki DF20ATL require a battery?
Yes. The DF20ATL features electric start and Power Trim & Tilt and requires a properly sized marine battery.
Does the DF20ATL include a remote control box?
Yes. A genuine Suzuki side-mount remote control box is included.
Does the DF20ATL include throttle and shift control cables?
No. Throttle and shift control cables are sold separately. Most installations require one throttle cable and one shift cable.
How do I determine which control cable length I need?
If replacing existing cables, check the length printed on the cable jacket. For new installations, measure the intended cable routing from the control box to the outboard, allowing enough length for proper bends and engine movement.
Does the DF20ATL include a fuel tank?
Yes. A 12-liter (3.17-gallon) portable fuel tank and fuel hose assembly are included.
Does the DF20ATL include a propeller?
Yes. The DF20ATL includes a 3-blade aluminum propeller measuring 9-1/4 inches in diameter with a 9-inch pitch.
What is the difference between the DF20ATS and DF20ATL?
Both models feature electric start, remote control, and Power Trim & Tilt. The DF20ATS is designed for boats with a 15-inch transom, while the DF20ATL features a 20-inch long shaft for boats with a 20-inch transom.
Does my Suzuki outboard include engine oil?
Yes. Marine Parts Warehouse includes FREE Suzuki ECSTAR 4-Stroke Engine Oil with every new portable Suzuki outboard purchase.
How quickly will my outboard ship?
Most Suzuki DF20ATL outboards ship within approximately 5 business days.
